Name: MDOT_LRM_Nov25_OR

Display Field: ROAD_NAME

Type: Feature Layer

Geometry Type: esriGeometryPolyline

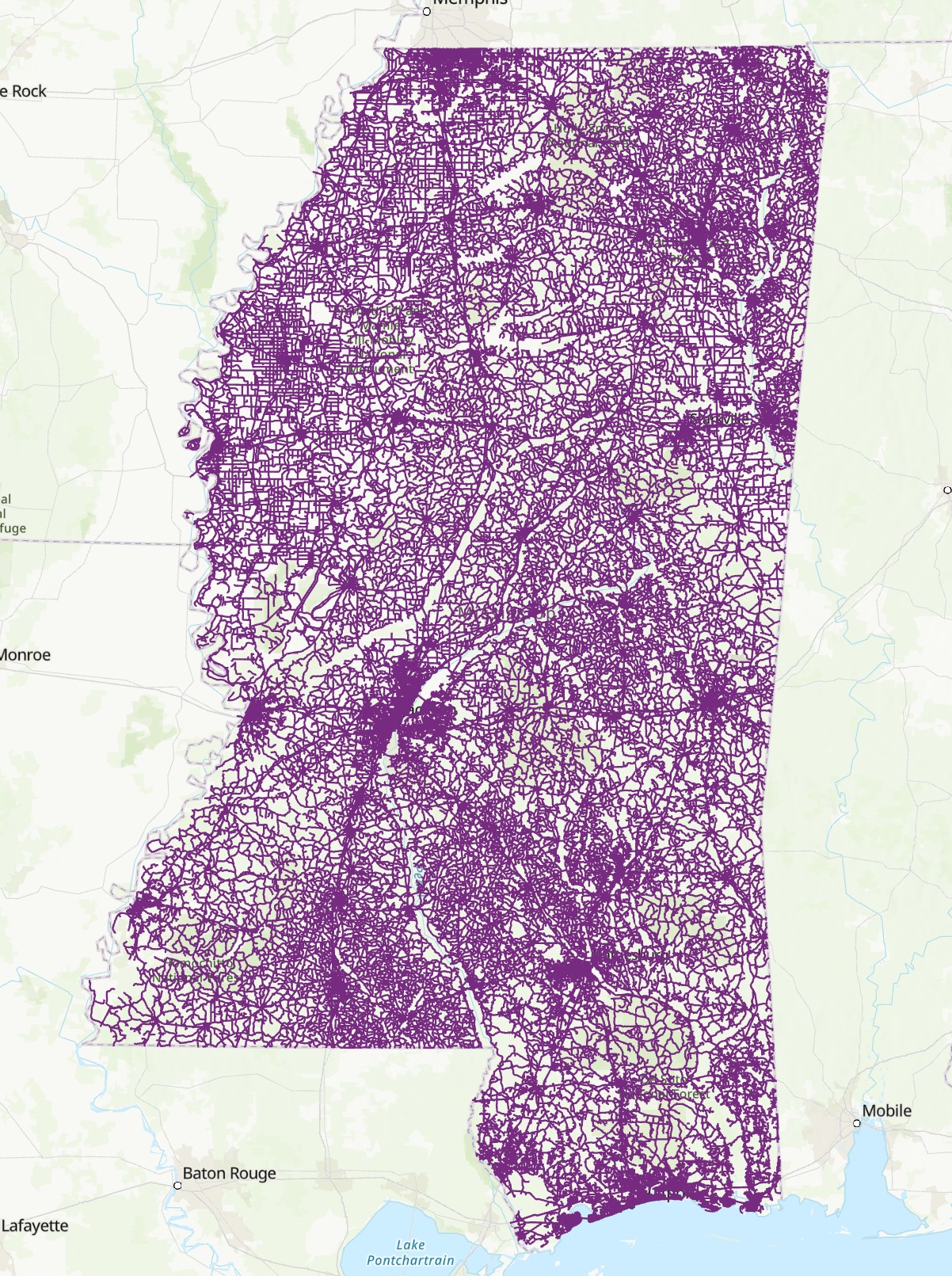

Description: The MDOT_CO_LRS feature is a complete dataset of roads in the State of Mississippi. All road mileages are referenced to the county they are contained. • This feature contains the State Maintained Routes as well as Local Roads. • All connectivity and topology checks have been performed. • The network contains ramps, frontage roads, intersection turnouts, as well as cross-overs.*** Updated data as of November 10, 2025 ***

Service Item Id: 361228cae7c64ae6ba9fa30f1b1c13b5

Copyright Text: MS Department of Transportation (MDOT), MARIS

Default Visibility: true

MaxRecordCount: 2000

MaxSelectionCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 42000.0

Max Scale: 0.0

Supports Advanced Queries: false

Supports Statistics: false

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 340542.9238999998
YMin: 1049443.9299999997
XMax: 649633.46
YMax: 1577466.5899999999
Spatial Reference: 102609  (3814)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: ROUTE_CLAS
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: CHANNEL
  Label: Ramp, Crosover, Channel, Rest Area, Weigh Station
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [178, 178, 178, 255]
  Width: 0
• Value: CROSSOVER
  Label: Ramp, Crosover, Channel, Rest Area, Weigh Station
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [178, 178, 178, 255]
  Width: 0
• Value: RAMP
  Label: Ramp, Crosover, Channel, Rest Area, Weigh Station
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [178, 178, 178, 255]
  Width: 0
• Value: REST AREA
  Label: Ramp, Crosover, Channel, Rest Area, Weigh Station
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [178, 178, 178, 255]
  Width: 0
• Value: ROUNDABOUT
  Label: Ramp, Crosover, Channel, Rest Area, Weigh Station
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [178, 178, 178, 255]
  Width: 0
• Value: WEIGH STATION
  Label: Ramp, Crosover, Channel, Rest Area, Weigh Station
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [178, 178, 178, 255]
  Width: 0
Transparency: 0
Labeling Info:
Label Placement: esriServerLinePlacementAboveAlong
Label Expression: [ROAD_NAME]
Use Coded Values: true
Symbol:
Color: [0, 0, 0, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: left
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 8
Font Family: Arial
Font Style: normal
Font Weight: bold
Font Decoration: none

Min. Scale: 10000.0
Max. Scale: 0.0

Feature Draw Order:

N/A

Advanced Query Capabilities:

Supports Statistics: false
Supports OrderBy: false
Supports Distinct: false
Supports Pagination: false
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: false
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: false
Supports Having Clause: false
Supports Count Distinct: false
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• FID ( type: esriFieldTypeOID, alias: FID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• SRI ( type: esriFieldTypeString, alias: SRI, length: 15 )
• MP_START ( type: esriFieldTypeDouble, alias: MP_START )
• MP_END ( type: esriFieldTypeDouble, alias: MP_END )
• M_LENGTH ( type: esriFieldTypeDouble, alias: M_LENGTH )
• ROUTE_CLAS ( type: esriFieldTypeString, alias: ROUTE_CLAS, length: 50 )
• ROAD_NAME ( type: esriFieldTypeString, alias: ROAD_NAME, length: 66 )
• COUNTY ( type: esriFieldTypeInteger, alias: COUNTY )
• ROUTE_ID ( type: esriFieldTypeString, alias: ROUTE_ID, length: 8 )
• PASS_DIR ( type: esriFieldTypeString, alias: PASS_DIR, length: 1 )
• SEG_NO ( type: esriFieldTypeInteger, alias: SEG_NO )
• INV_NO ( type: esriFieldTypeString, alias: INV_NO, length: 8 )
• ID1 ( type: esriFieldTypeInteger, alias: ID1 )
• WM_VALIDFR ( type: esriFieldTypeString, alias: WM_VALIDFR, length: 24 )
• WM_VALIDTI ( type: esriFieldTypeString, alias: WM_VALIDTI, length: 24 )
• MOD_STATUS ( type: esriFieldTypeString, alias: MOD_STATUS, length: 6 )
• Z_ORDER ( type: esriFieldTypeInteger, alias: Z_ORDER )
• CTRL_SEQ ( type: esriFieldTypeInteger, alias: CTRL_SEQ )
• Shape_Leng ( type: esriFieldTypeDouble, alias: Shape_Leng )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
